Masterflex
07015-20
L/S Standard Pump Head
New, original packaging In stock
$268.47
Product price excludes international shipping.
Product details
Product Details: * Product Type: L/S Standard Pump Head * Tubing Size: L/S 15 High-Performance Precision Tubing * Number of Channels: 1 * Maximum Flow Rate: 1000 mL/min * Optimum Speed Range: 0.02–600 rpm * Housing Material: Polycarbonate (PC) * Rotor Material: Cold-Rolled Steel (CRS) * Rollers: 3 * Gear Ratio: 1:1 * Occlusion: Fixed * Tubing Retention: Manual * Volume per Revolution: 1.7 mL * Maximum Suction Lift: 8.8 m Official Dimensions (L × W × H): 6.4 × 7.7 × 7.7 cm Weight: 0.38 kg

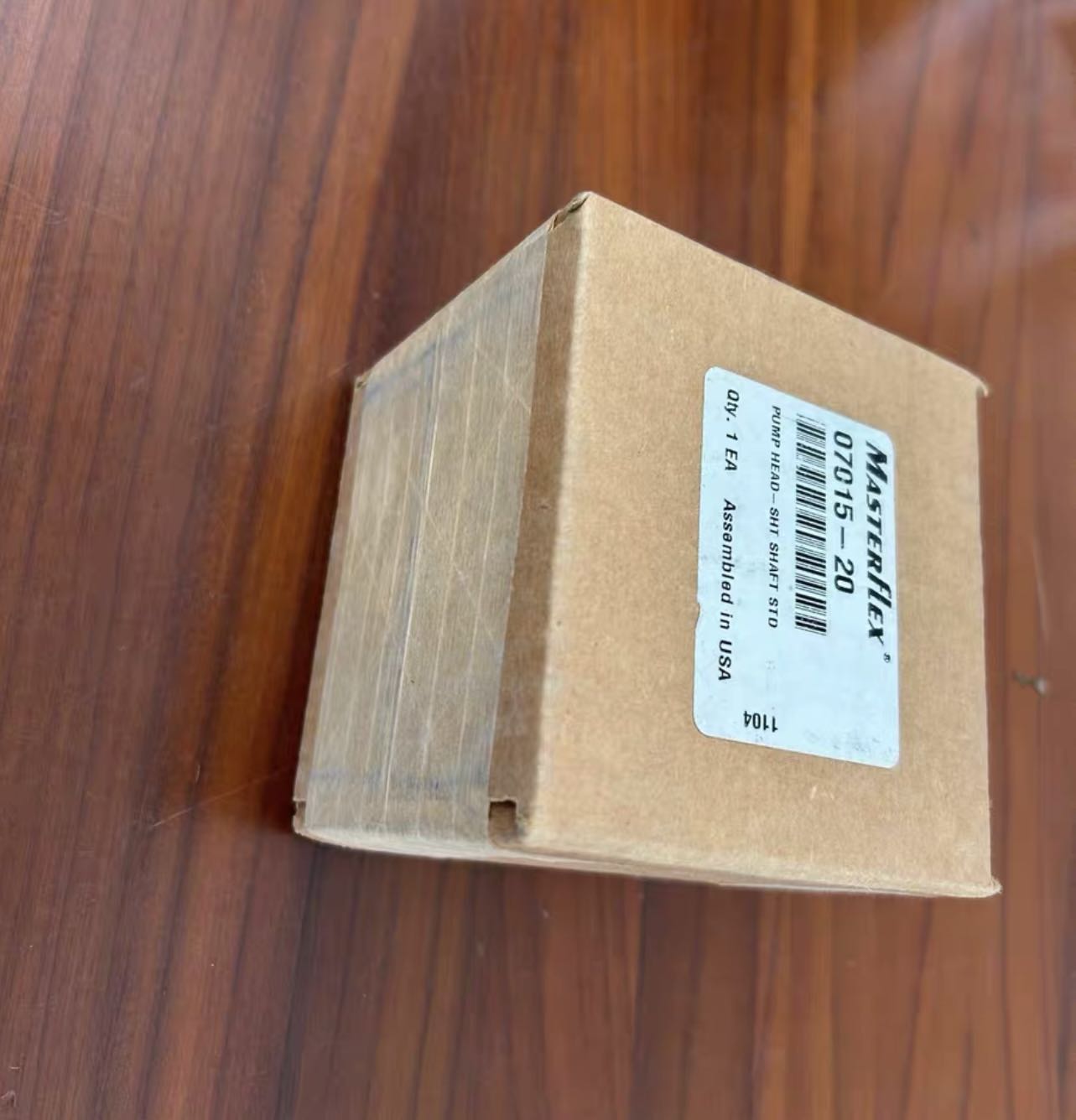

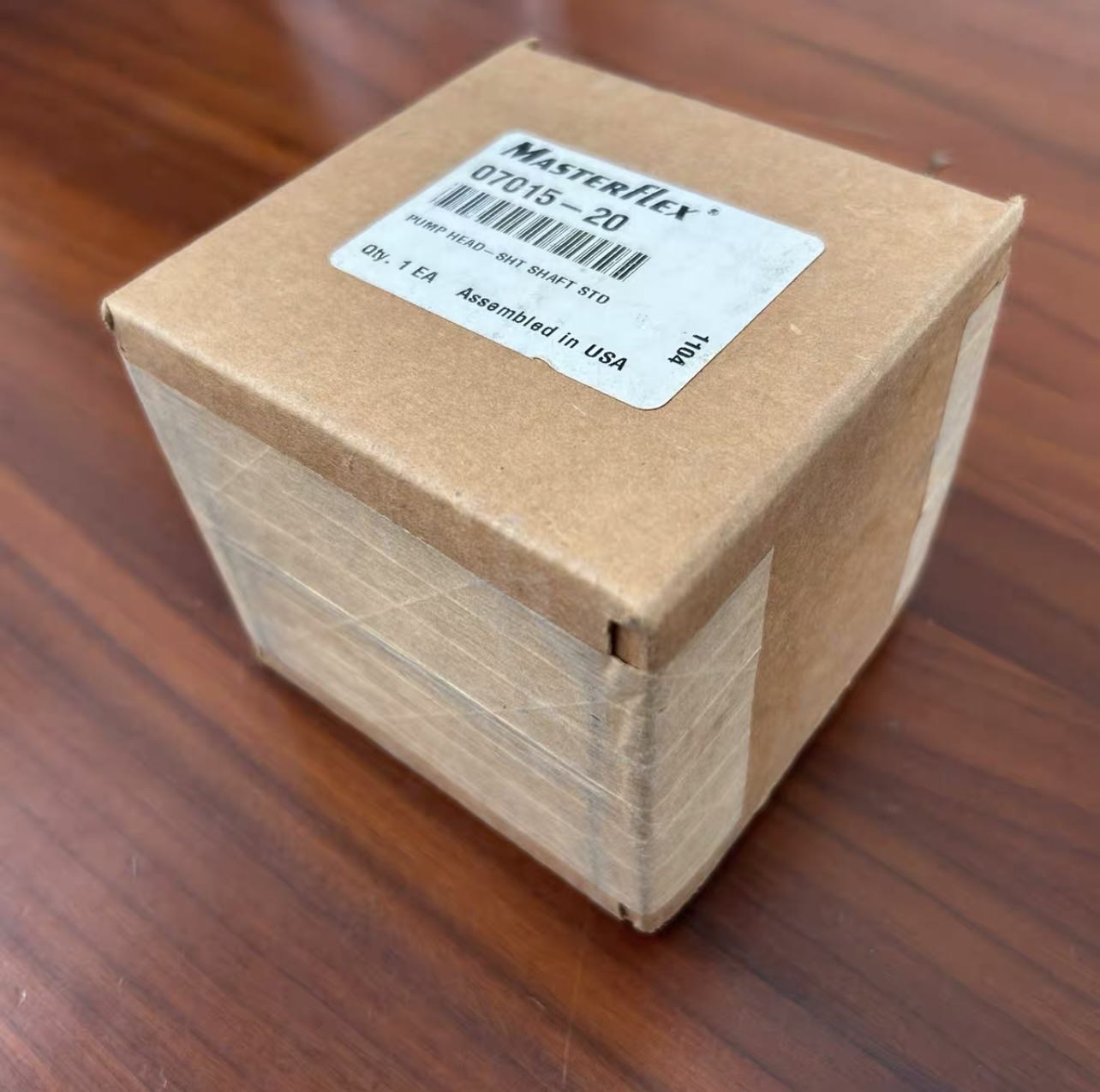

The photographs show this part in its original sealed packaging, with the manufacturer label, exactly as the stock is held. Nothing has been opened to photograph it, so the carton seal and the label can both be checked against what arrives.
Specifications
| Manufacturer | Masterflex |
|---|---|
| Part number | 07015-20 |
| Product Type | L/S Standard Pump Head |
| Tubing Size | L/S 15 High-Performance Precision Tubing |
| Number of Channels | 1 |
| Maximum Flow Rate | 1000 mL/min |
| Optimum Speed Range | 0.02–600 rpm |
| Housing Material | Polycarbonate (PC) |
| Rotor Material | Cold-Rolled Steel (CRS) |
| Rollers | 3 |
| Gear Ratio | 1:1 |
| Occlusion | Fixed |
| Tubing Retention | Manual |
| Volume per Revolution | 1.7 mL |
| Weight | 0.38 kg |
| Dimensions | 6.4 × 7.7 × 7.7 cm |
Shipping & ordering
Send the request without paying anything. We confirm the international freight for your address and send you a final total; payment is only asked for once you have approved that total.
Stock is not reserved by sending a request, so availability is re-checked when the freight is confirmed.
Technical specifications
| Brand | Masterflex |
|---|---|
| Model number | 07015-20 |
| Condition | New, original packaging |
| Availability | In stock |
| Product Type | L/S Standard Pump Head |
| Tubing Size | L/S 15 High-Performance Precision Tubing |
| Number of Channels | 1 |
| Maximum Flow Rate | 1000 mL/min |
| Optimum Speed Range | 0.02–600 rpm |
| Housing Material | Polycarbonate (PC) |
| Rotor Material | Cold-Rolled Steel (CRS) |
| Rollers | 3 |
| Gear Ratio | 1:1 |
| Occlusion | Fixed |
| Tubing Retention | Manual |
| Volume per Revolution | 1.7 mL |
