DS7-340SX070N0-L

Product Details: * Model: DS7-340SX070N0-L * Brand: Eaton * Series: DS7 * Product Type: Soft Starter * Catalog Number: 171749 * Rated Operational Current: 70 A * Motor Power at 400 V / 50 Hz: 37 kW * Motor Power at 460 V / 60 Hz: 50 HP * Main Supply Voltage: 200-480 VAC * Main Supply Frequency: 50/60 Hz * Control Supply Voltage: 24 VAC/DC * Frame Size: FS3 * Temperature Version: Low Temperature * Operating Temperature: -40°C to +40°C * Internal Bypass: Yes * Soft Start Function: Yes * Protection Rating: IP20 * Overvoltage Category: II * Pollution Degree: 2 * Mounting: Panel Mounting * Standards / Certifications: CE, UL, CSA, IEC/EN 60947-4-2, UL 508 * Condition: New * Quantity: 1 Piece Eaton officially identifies DS7-340SX070N0-L, catalog number 171749, as a 70 A DS7 soft starter for 200-480 VAC three-phase loads with 24 VAC/DC control voltage, internal bypass and an extended low-temperature operating range down to -40°C.

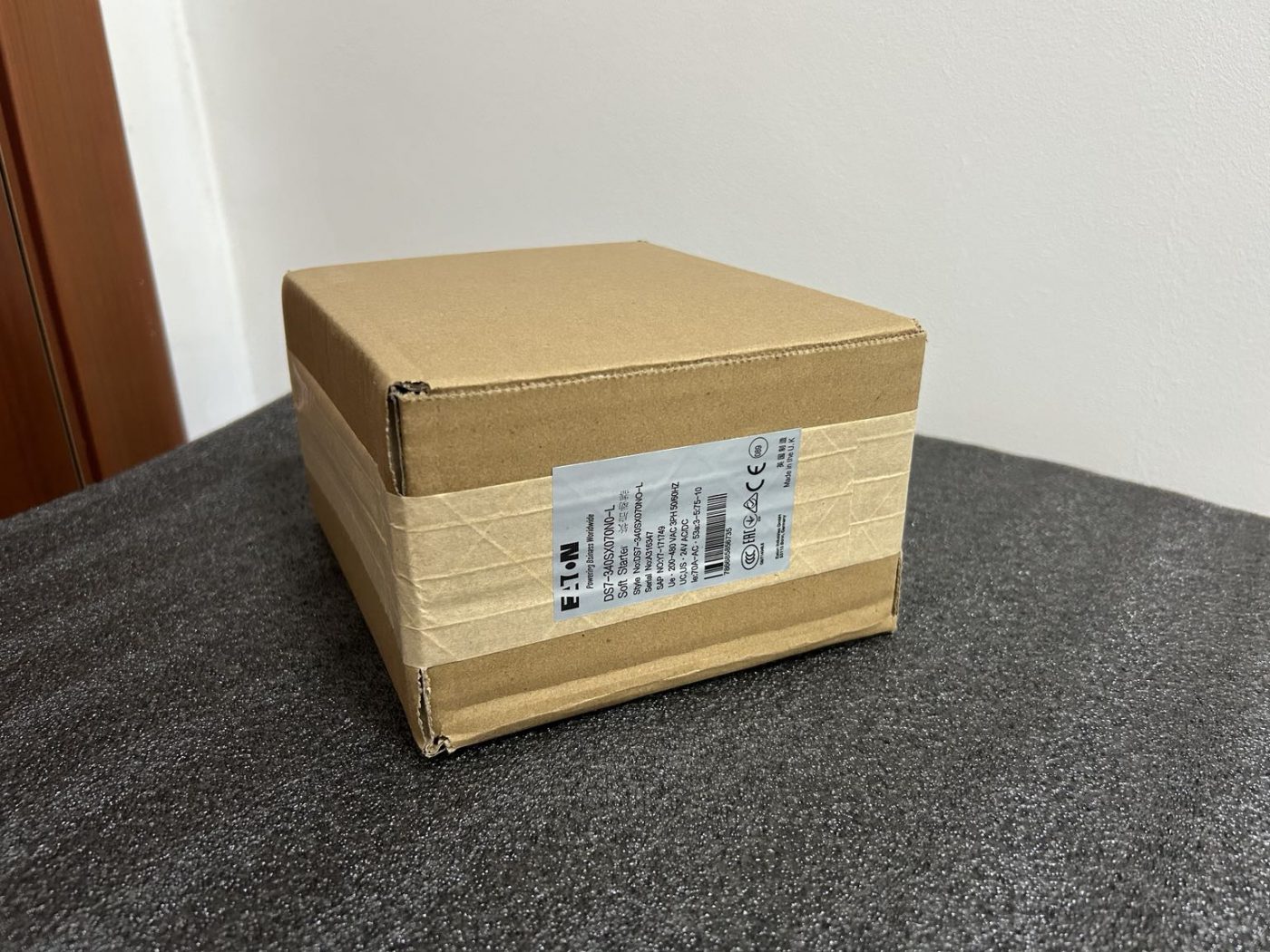

The photographs show this part in its original sealed packaging, with the manufacturer label, exactly as the stock is held. Nothing has been opened to photograph it, so the carton seal and the label can both be checked against what arrives.

Send the request without paying anything. We confirm the international freight for your address and send you a final total; payment is only asked for once you have approved that total.

Stock is not reserved by sending a request, so availability is re-checked when the freight is confirmed.
