EMR6-AW500-D-1

Product Details: The Eaton EMR6-AW500-D-1 is a multifunctional three-phase monitoring relay from the Moeller EMR6 series. It is designed to monitor three-phase electrical networks and detect abnormal operating conditions. The unit supports a measuring voltage range of 300–500 V AC at 50/60 Hz and is suitable for industrial control panels, motor protection systems, machinery and automation applications.  Main Specifications: Monitoring Voltage Range: 300–500 V AC Frequency: 50/60 Hz Phase Imbalance Threshold: Adjustable 2–25% Connection Type: Screw connection Power Consumption: 3 VA Rated Impulse Withstand Voltage: 4,000 V AC Operating Temperature: -25°C to +60°C Storage Temperature: -40°C to +85°C Certifications: UL, IEC, CSA, CCC, GL EAN: 4015081788002

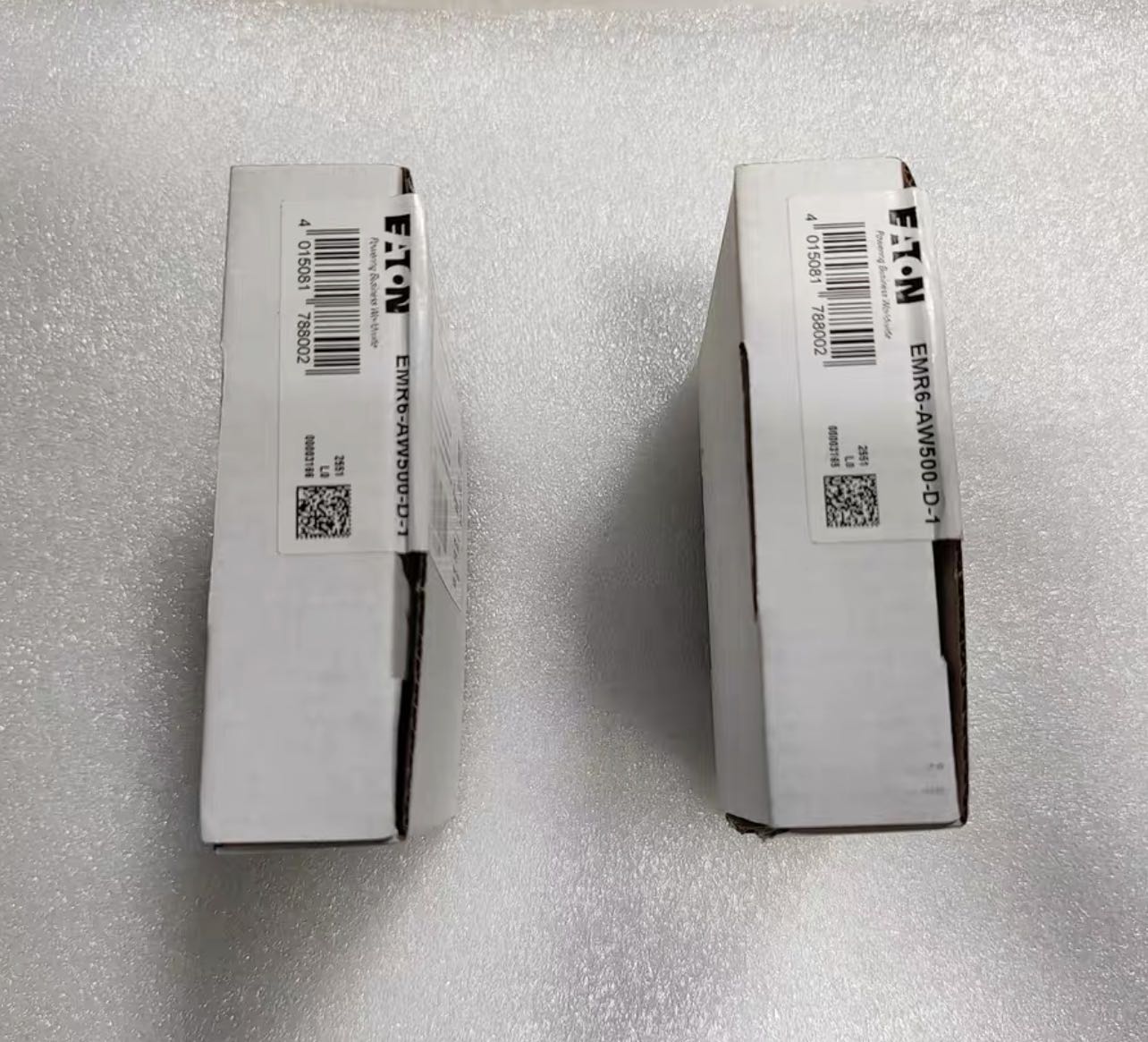

The photographs show this part in its original sealed packaging, with the manufacturer label, exactly as the stock is held. Nothing has been opened to photograph it, so the carton seal and the label can both be checked against what arrives.

Send the request without paying anything. We confirm the international freight for your address and send you a final total; payment is only asked for once you have approved that total.

Stock is not reserved by sending a request, so availability is re-checked when the freight is confirmed.
