K8DS-PM2

Product Details: * Model: K8DS-PM2 * Brand: OMRON * Series: K8DS * Product Type: Three-Phase Voltage / Phase Sequence / Phase Loss Monitoring Relay * Rated Input Voltage: 380 / 400 / 415 / 480 VAC * Phase System: Three-Phase, Three-Wire * Input Frequency: 50/60 Hz * Input Load: Approx. 2.8 VA * Monitoring Functions: Overvoltage, Undervoltage, Phase Sequence, Phase Loss * Overvoltage / Undervoltage Setting Range: -30% to +25% of Rated Input Voltage * Overvoltage / Undervoltage Operating Time: 0.1 to 30 s * Phase Sequence Operating Time: 0.1 s ± 0.05 s * Phase Loss Operating Time: 0.1 s Max. * Reset Method: Automatic Reset * Output: 1 SPDT Relay * Mounting: DIN Rail * Terminal Protection: IP20 * Standards: EN 60947-5-1, UL 508, CSA C22.2 No.14, CCC

OMRON officially identifies K8DS-PM2 as a three-phase voltage, phase-sequence and phase-loss monitoring relay for 380 / 400 / 415 / 480 VAC systems.

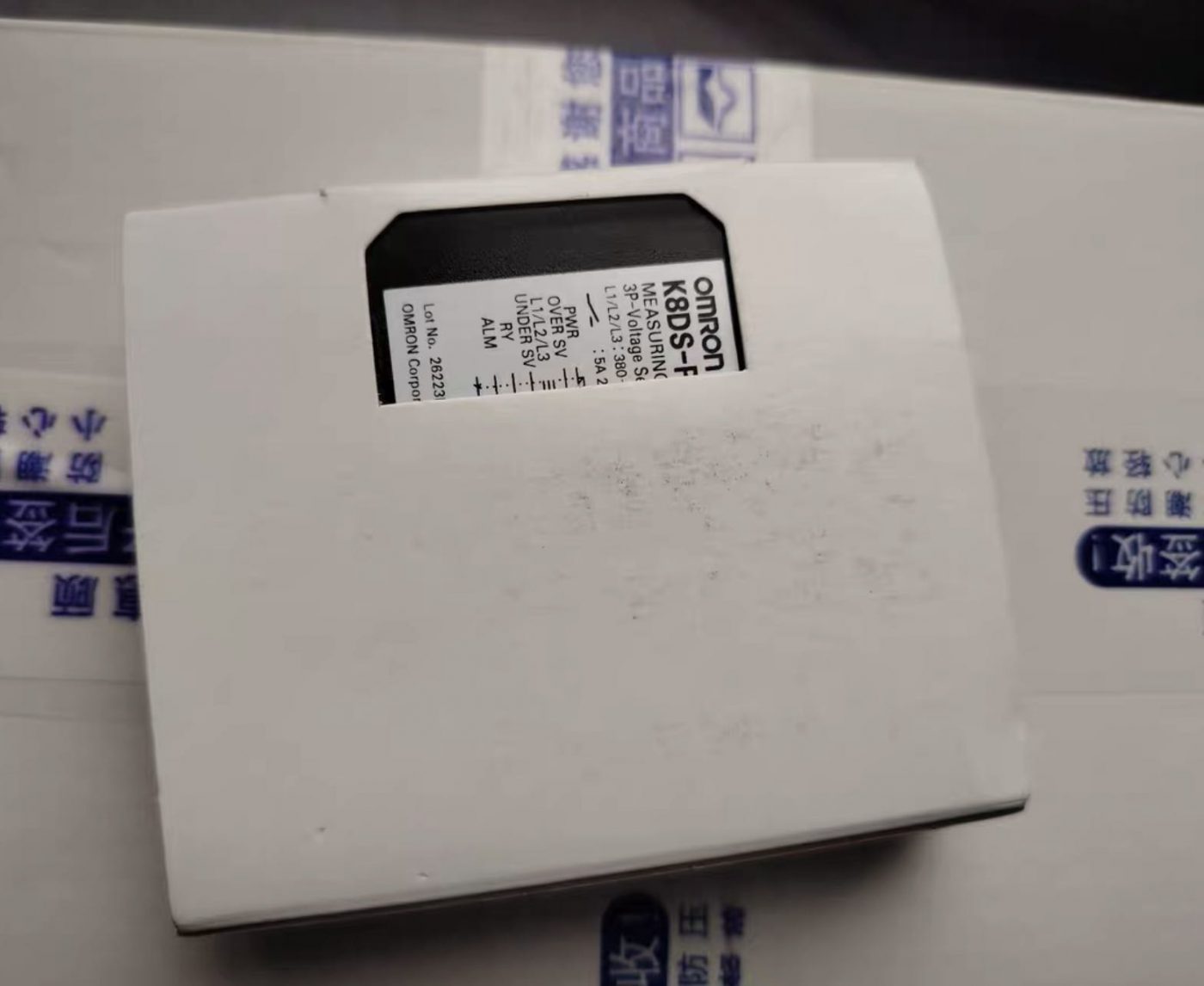

The photographs show this part in its original sealed packaging, with the manufacturer label, exactly as the stock is held. Nothing has been opened to photograph it, so the carton seal and the label can both be checked against what arrives.

Send the request without paying anything. We confirm the international freight for your address and send you a final total; payment is only asked for once you have approved that total.

Stock is not reserved by sending a request, so availability is re-checked when the freight is confirmed.
