METSEPM8240

Product Details:

Brand: Schneider Electric

Model: METSEPM8240

Series: PowerLogic PM8000 Product

Type: Power Quality Meter / Power and Energy Meter

The Schneider Electric METSEPM8240 is a PowerLogic PM8000 series panel-mounted power quality meter with an integrated display. It is designed for electrical energy monitoring, power-quality analysis, industrial power distribution systems, energy management and critical electrical installations. Schneider Electric specifies 512 MB onboard memory, high-accuracy metering, integrated Ethernet and RS485 communication, data/event logging, waveform logging and power-quality monitoring functions.  Main Specifications: Display: Integrated Display Mounting: Panel / Flush Mount Memory: 512 MB Voltage Input: 57–400 V L-N / up to 690 V L-L depending on wiring configuration Frequency: 50/60 Hz Current Input: 1 A / 5 A nominal Digital Inputs: 3 Digital Output: 1 pulse output Communication: Ethernet + RS485 Protocols: Modbus TCP/IP, Modbus RTU, ION, DNP3, IEC 61850 Data Functions: Event Logs, Alarm Logs, Harmonics Logs, Sag/Swell Logs, Waveform Logs, Trending and Forecasting Accuracy: Class 0.2S active energy

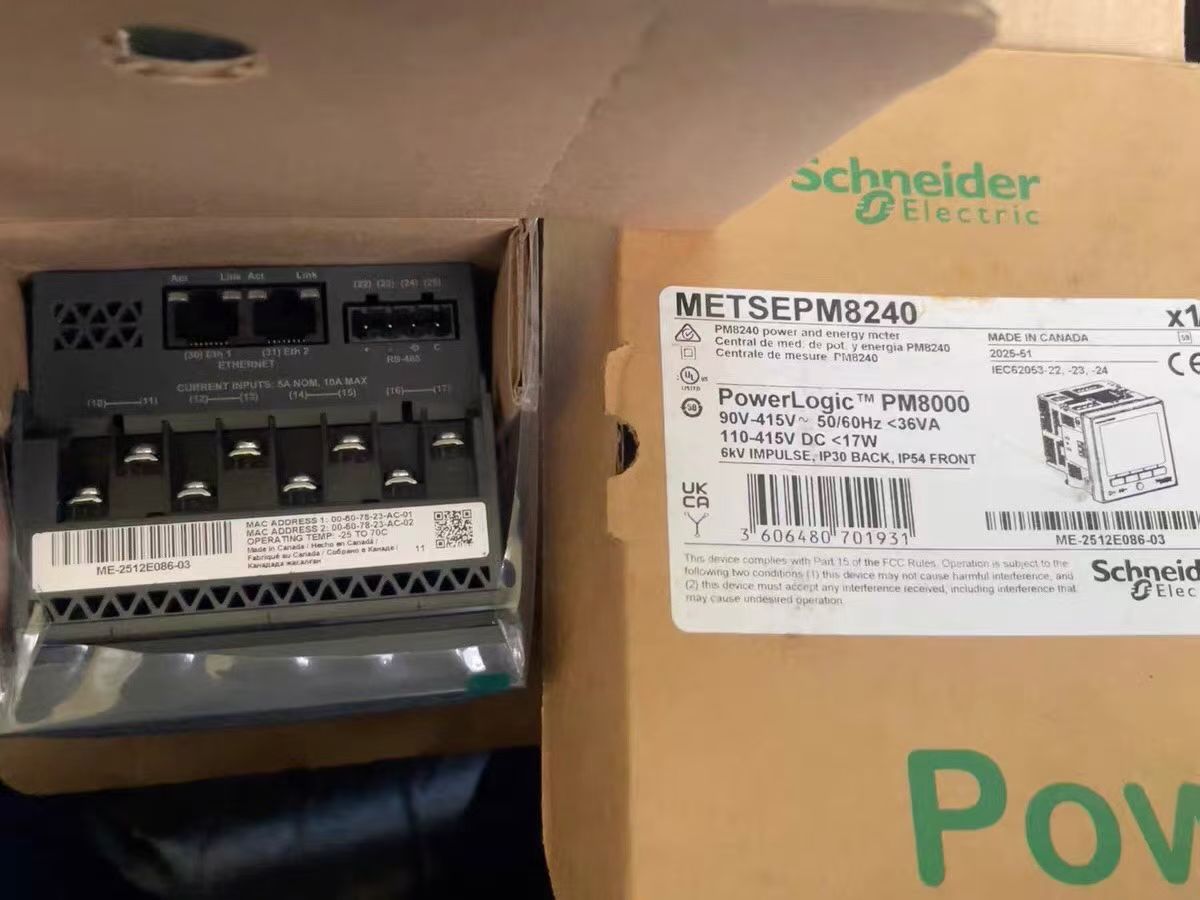

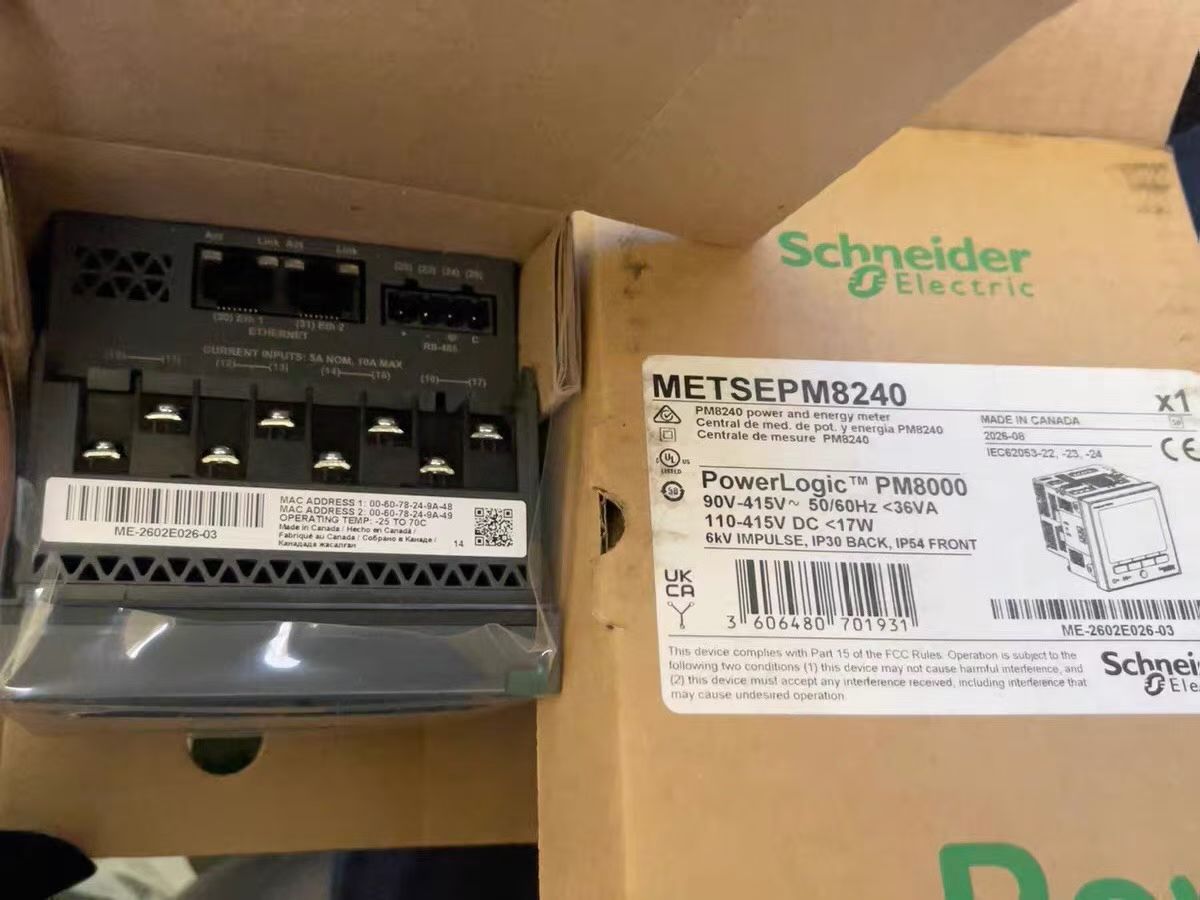

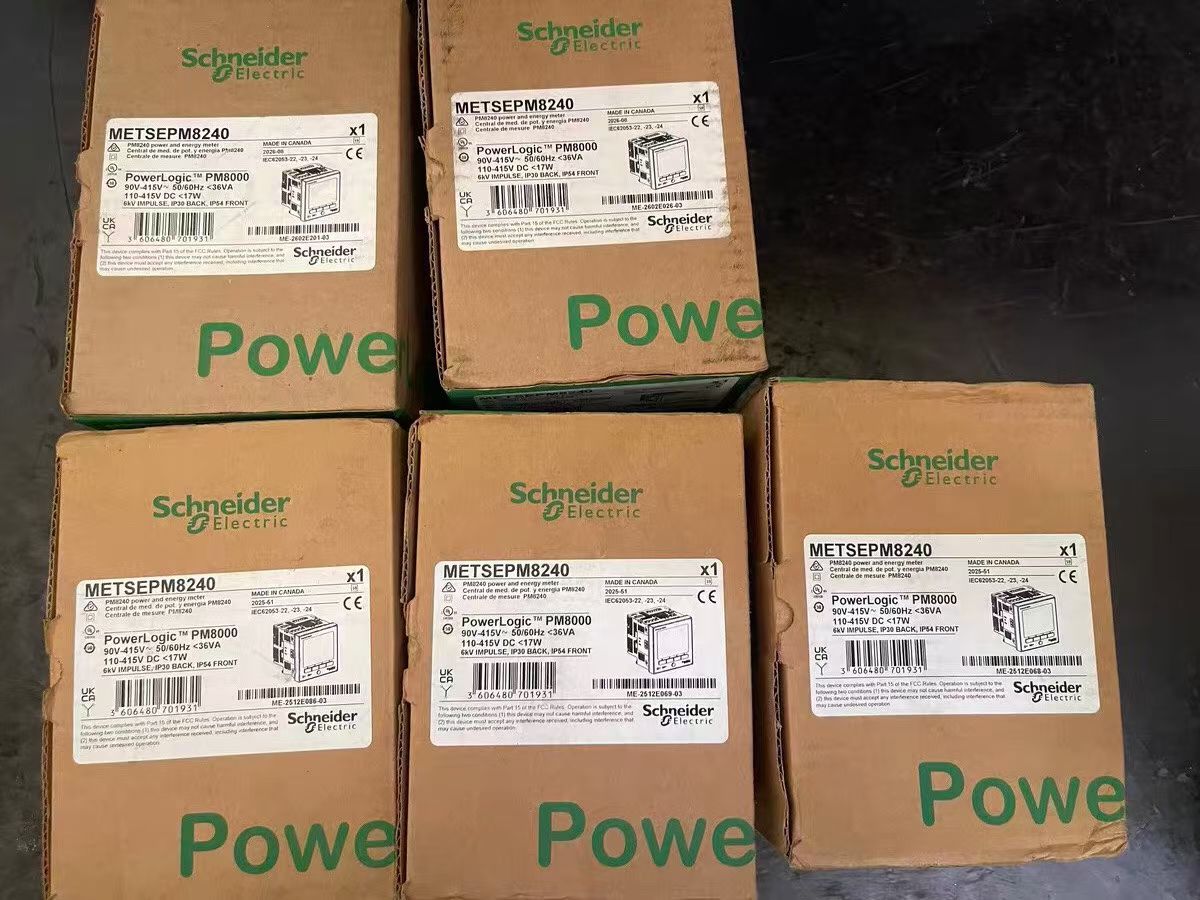

The photographs show this part in its original sealed packaging, with the manufacturer label, exactly as the stock is held. Nothing has been opened to photograph it, so the carton seal and the label can both be checked against what arrives.

Send the request without paying anything. We confirm the international freight for your address and send you a final total; payment is only asked for once you have approved that total.

Stock is not reserved by sending a request, so availability is re-checked when the freight is confirmed.
