MTN6725-0004

Product Details: * Model: MTN6725-0004 * Brand: Schneider Electric * Series: SpaceLogic KNX * Product Type: KNX DALI Gateway * Version: Basic REG-K/2/16/64 * DALI Output Channels: 2 * DALI Devices Supported: Up to 64 electronic ballasts per channel * DALI Groups: Up to 16 groups per channel * Bus System: KNX * Communication Protocol: DALI * Supply Voltage: 110-240 VAC/DC * Frequency: 50/60 Hz * Maximum Power Consumption: 18 W * KNX Supply Current: 5 mA * Mounting: DIN Rail * Protection Rating: IP20 * Application: KNX Building Automation and DALI Lighting Control

Schneider Electric officially identifies MTN6725-0004 as a SpaceLogic KNX DALI Gateway Basic with two independent DALI outputs, supporting up to 64 DALI devices and 16 groups per channel.

Official Length: Not specified in the current Schneider Electric documentation located
Official Width: 7.2 cm
Official Height: Not specified in the current Schneider Electric documentation located
Official Product Weight: Not specified in the current Schneider Electric documentation located

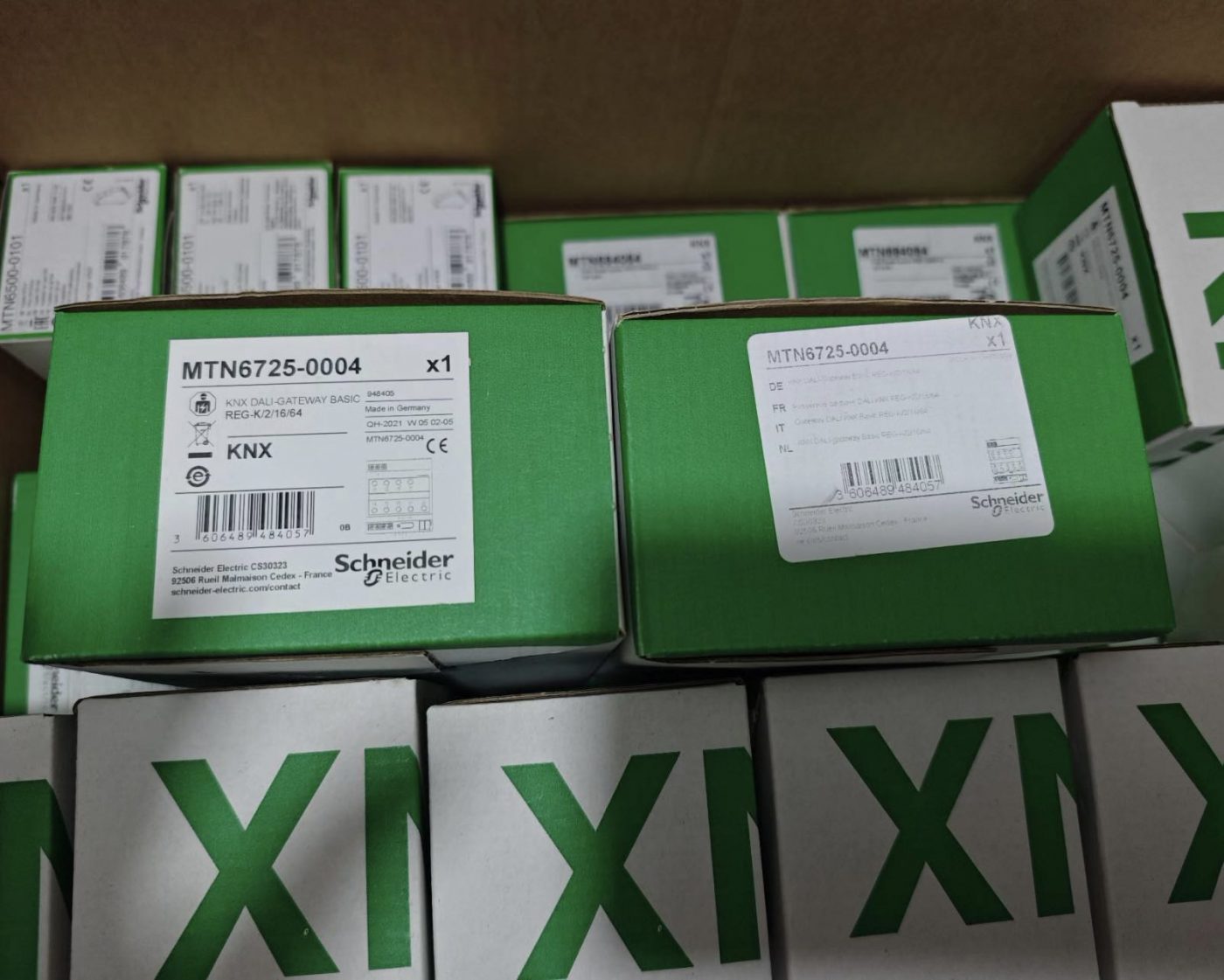

The photographs show this part in its original sealed packaging, with the manufacturer label, exactly as the stock is held. Nothing has been opened to photograph it, so the carton seal and the label can both be checked against what arrives.

Send the request without paying anything. We confirm the international freight for your address and send you a final total; payment is only asked for once you have approved that total.

Stock is not reserved by sending a request, so availability is re-checked when the freight is confirmed.
