NX-AD2603

Product Details: * Model: NX-AD2603 * Brand: OMRON * Series: NX Series * Product Type: Analog Input Unit * Number of Inputs: 2 * Input Type: Voltage Input * Input Method: Single-Ended Input * Input Range: -10 to +10 V * Input Conversion Range: -5% to 105% Full Scale * Absolute Maximum Input: ±15 V * Input Impedance: 1 MΩ Minimum * Resolution: 1/8000 Full Scale * Accuracy at 25°C: ±0.2% Full Scale * Accuracy at 0-55°C: ±0.4% Full Scale * Conversion Time: 250 μs / Point * I/O Refreshing Method: Free-Run Refreshing * External Connection: Screwless Clamping Terminal Block * Number of Terminals: 8 * Isolation: Between Input and NX Bus * Mounting: NX-Series I/O System / DIN Rail

OMRON officially identifies NX-AD2603 as a 2-point NX-Series analog voltage input unit with -10 to +10 V single-ended inputs, 1/8000 resolution and 250 μs/point conversion time.

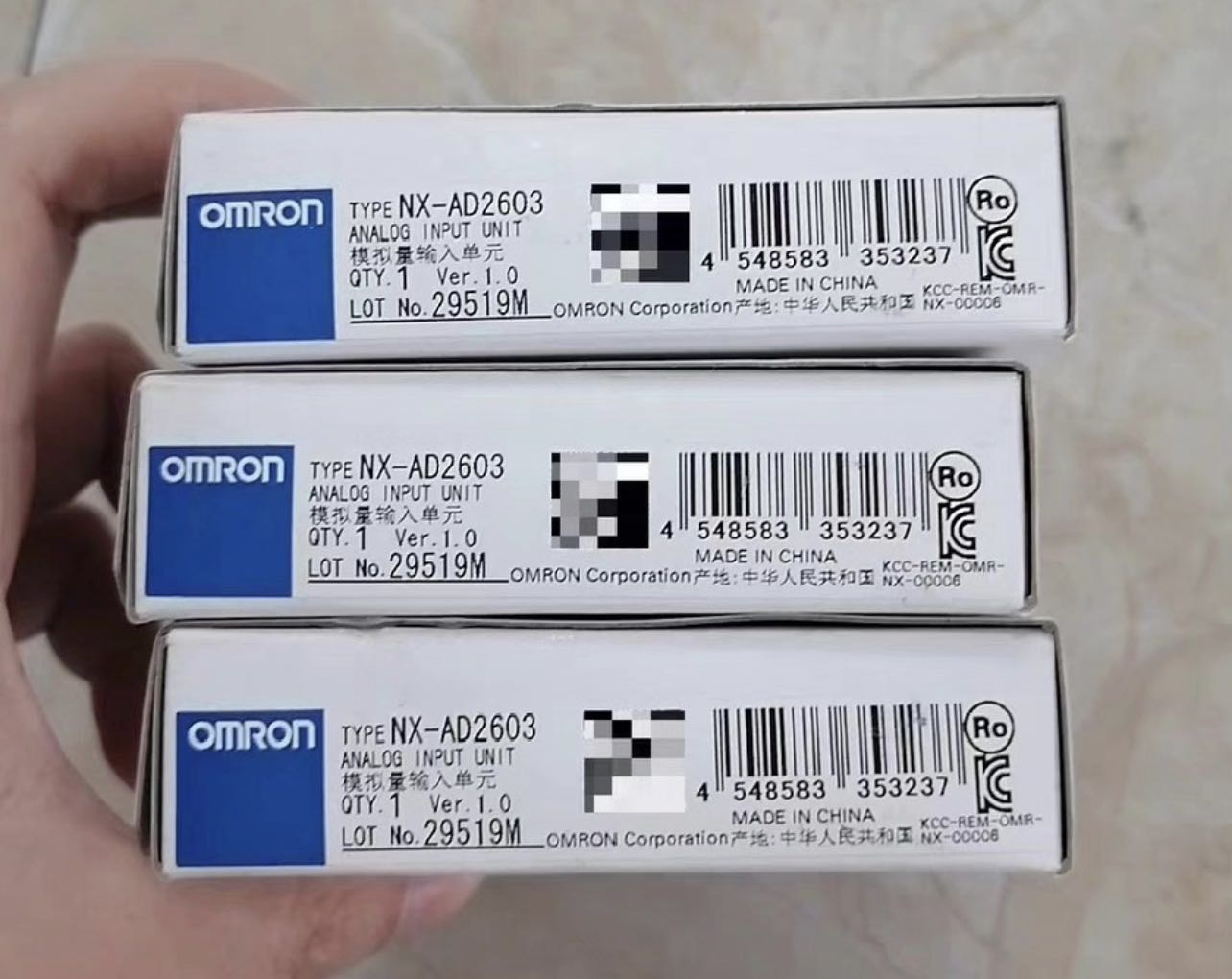

The photographs show this part in its original sealed packaging, with the manufacturer label, exactly as the stock is held. Nothing has been opened to photograph it, so the carton seal and the label can both be checked against what arrives.

Send the request without paying anything. We confirm the international freight for your address and send you a final total; payment is only asked for once you have approved that total.

Stock is not reserved by sending a request, so availability is re-checked when the freight is confirmed.
