TM3DM8R

Product Details:

Brand: Schneider Electric Model: TM3DM8R Product Type: Modicon TM3 Discrete Mixed I/O Expansion Module

The Schneider Electric TM3DM8R is a Modicon TM3 digital mixed input/output expansion module for industrial automation applications. It provides 4 digital inputs and 4 relay outputs and is designed for expanding Modicon M221, M241, M251 and M262 logic controllers. The module uses removable screw-terminal connections and operates with 24 VDC input circuits.  Main Specifications: Digital Inputs: 4 Digital Input Voltage: 24 VDC Input Current: 7 mA Relay Outputs: 4 Relay Output Rating: 24 VDC / 240 VAC Maximum Current per Output: 2 A Maximum Current per Common Line: 7 A Terminal Type: Removable screw terminal block, 5.08 mm pitch Mounting: DIN rail / panel mounting Compatible Controllers: Modicon M221, M241, M251, M262  Official Product Dimensions: Height: 9.0 cm Width: 2.74 cm Depth: 8.46 cm Official size: 90 × 27.4 × 84.6 mm.  Official Weight: Approximately 0.11 kg / 110 g for this TM3 module size/configuration. Schneider Electric’s current TM3 documentation lists representative mass around 109.7 g for this module family.

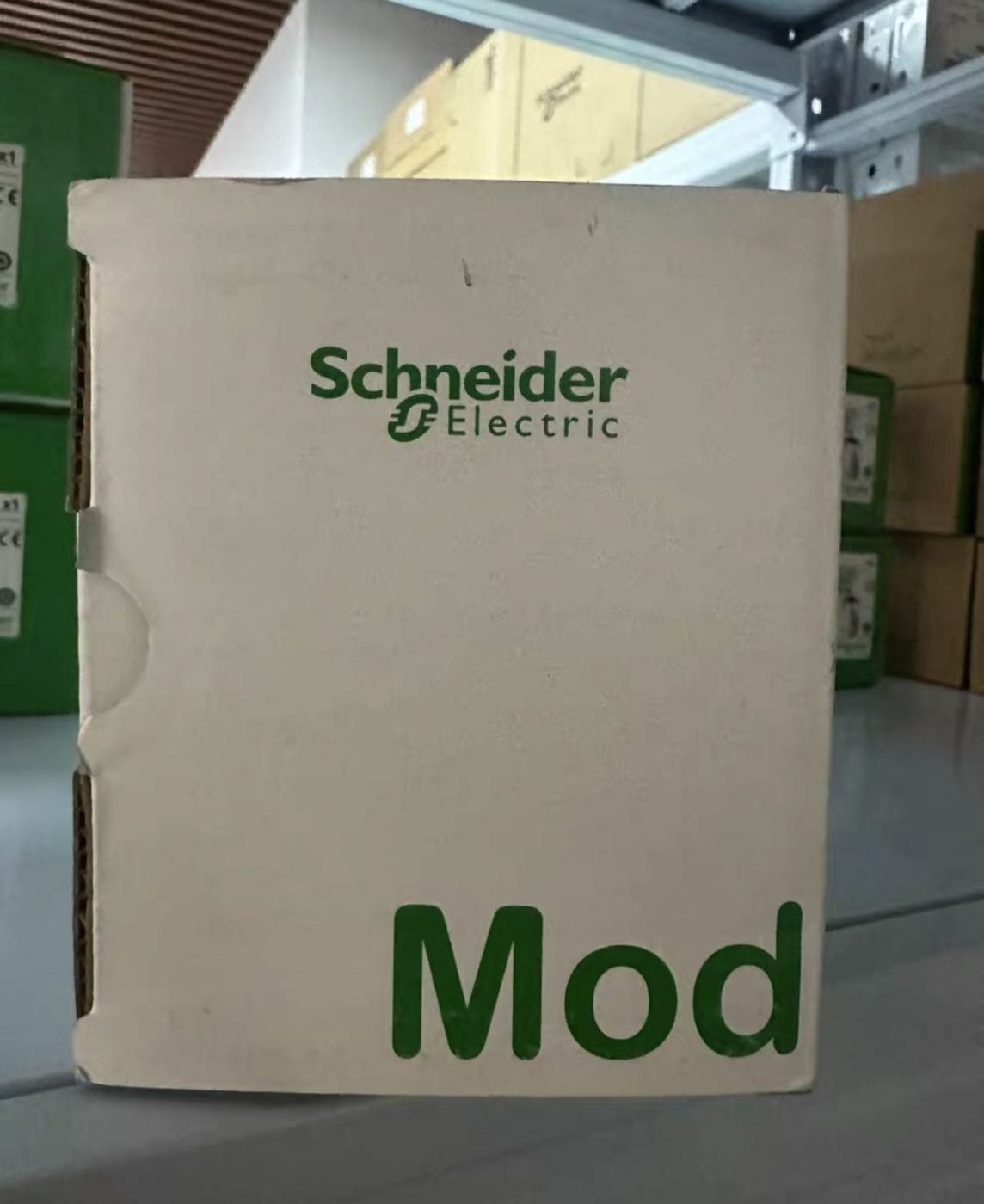

The photographs show this part in its original sealed packaging, with the manufacturer label, exactly as the stock is held. Nothing has been opened to photograph it, so the carton seal and the label can both be checked against what arrives.

Send the request without paying anything. We confirm the international freight for your address and send you a final total; payment is only asked for once you have approved that total.

Stock is not reserved by sending a request, so availability is re-checked when the freight is confirmed.
