TM3TI8T

Product Type:

Brand: Schneider Electric Model: TM3TI8T Product Type: Modicon TM3 Analog Temperature Input Module

Modicon TM3 Analog Temperature Input Module Product Details: The Schneider Electric TM3TI8T is an 8-channel temperature analog input expansion module for the Modicon TM3 I/O system. It is designed for use with Modicon M221, M241, M251 and M262 controllers. The module supports thermocouples, thermistors and resistance measurement inputs, and uses removable screw terminal blocks.  Main Specifications: Input Channels: 8 Input Type: Temperature / Analog Input Supported Sensors: Thermocouple, Thermistor, Resistor Supported Thermocouples: B, C, E, J, K, N, R, S, T Resolution: 16-bit / 15-bit + sign Rated Supply Voltage: 24 VDC Supply Voltage Range: 20.4–28.8 VDC Connection: Removable screw terminal block Maximum Input Cable Length: 30 m Protection Rating: IP20 Mounting: DIN rail or panel mounting Compatible Controllers: Modicon M221, M241, M251, M262  Official Product Dimensions: Height: 9.0 cm Width: 2.36 cm Depth: 7.0 cm Official dimensions: 90 × 23.6 × 70 mm.  Official Net Weight: 0.11 kg / 110 g.

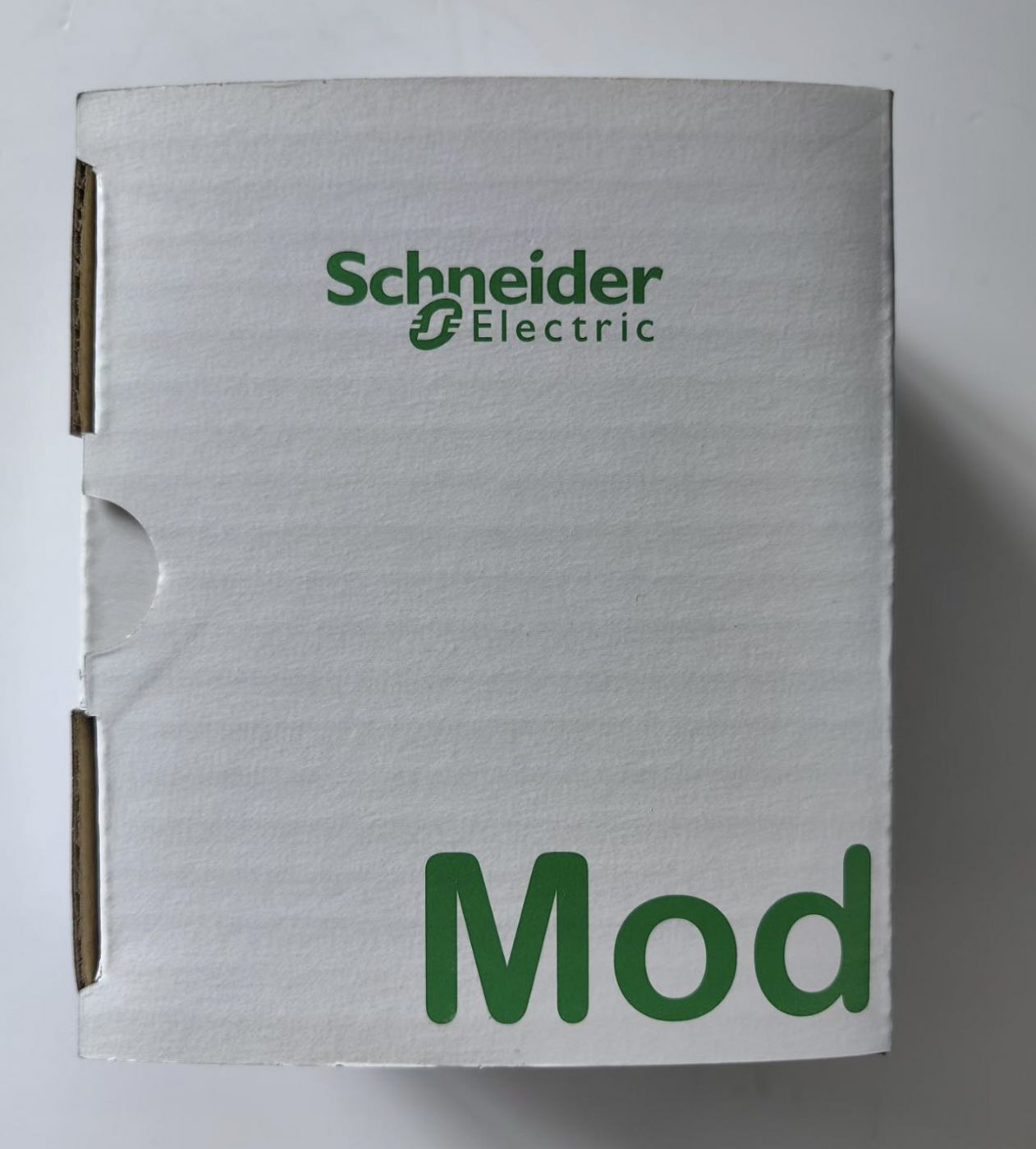

The photographs show this part in its original sealed packaging, with the manufacturer label, exactly as the stock is held. Nothing has been opened to photograph it, so the carton seal and the label can both be checked against what arrives.

Send the request without paying anything. We confirm the international freight for your address and send you a final total; payment is only asked for once you have approved that total.

Stock is not reserved by sending a request, so availability is re-checked when the freight is confirmed.
