Telemecanique Sensors
XS4P30NA340
Inductive Proximity Sensor
New, original packaging In stock
$74.58
Product price excludes international shipping.
Product details
Product Details:
Model: XS4P30NA340 Brand: Telemecanique Sensors Product Type: Inductive Proximity Sensor
* Series: XS4 * Sensor design: Cylindrical M30 * Sensing distance: 15 mm * Output type: NPN * Output function: Normally Open (NO) * Wiring: 3-wire * Supply voltage: 12–24 VDC * Switching capacity: 200 mA DC max. * Connection: 2 m pre-cabled * Thread: M30 × 1.5 * Housing material: PPS plastic * Protection rating: IP68 * Switching frequency: up to 1000 Hz * Non-flush mountable

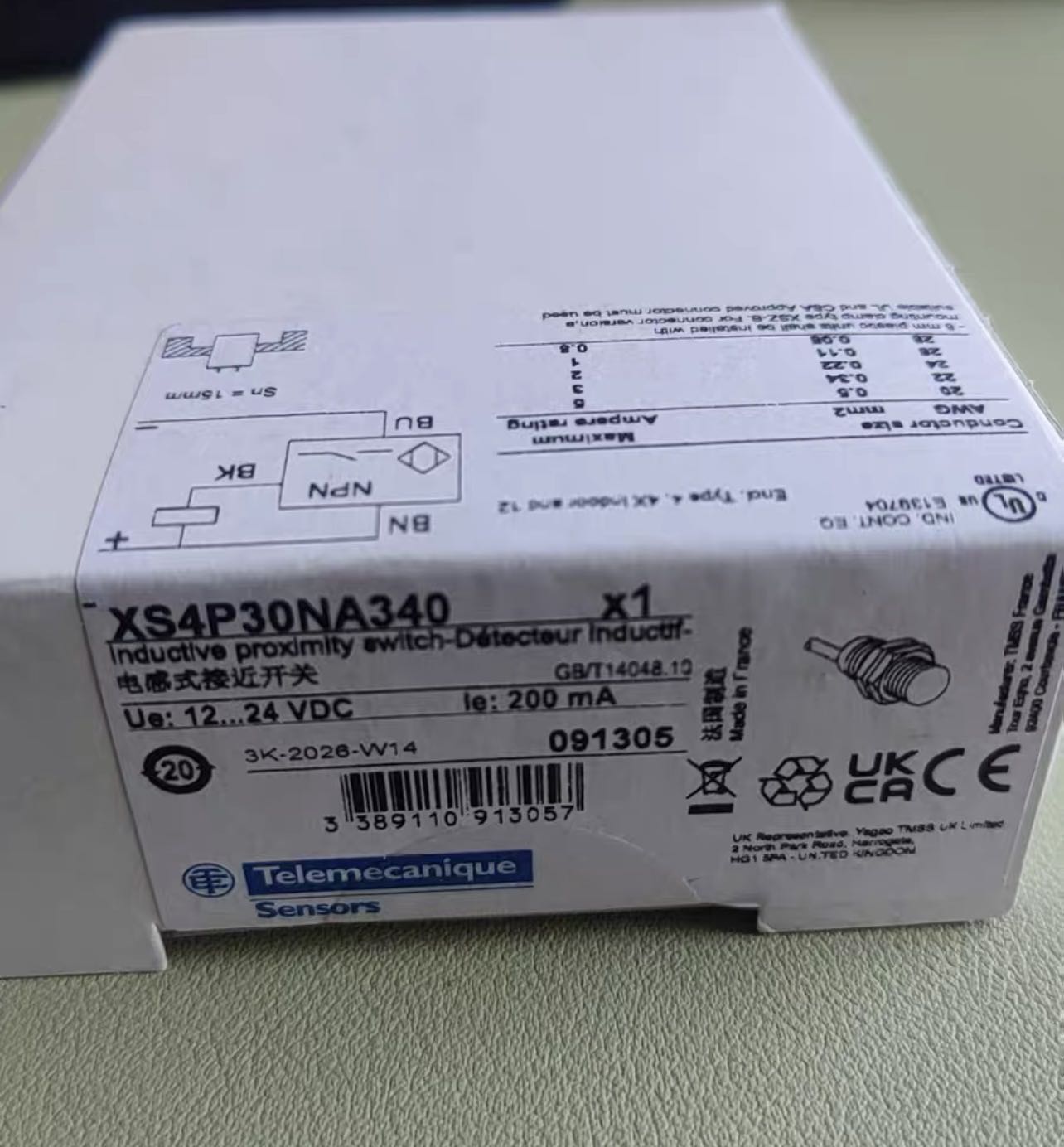

The photographs show this part in its original sealed packaging, with the manufacturer label, exactly as the stock is held. Nothing has been opened to photograph it, so the carton seal and the label can both be checked against what arrives.
Specifications
| Manufacturer | Telemecanique Sensors |
|---|---|
| Part number | XS4P30NA340 |
| Series | XS4 |
| Sensor design | Cylindrical M30 |
| Sensing distance | 15 mm |
| Output type | NPN |
| Output function | Normally Open (NO) |
| Wiring | 3-wire |
| Supply voltage | 12–24 VDC |
| Switching capacity | 200 mA DC max. |
| Connection | 2 m pre-cabled |
| Thread | M30 × 1.5 |
| Housing material | PPS plastic |
| Protection rating | IP68 |
| Weight | 0.120 kg |
| Dimensions | 4.3 × 4.3 × 3.0 cm |
Shipping & ordering
Send the request without paying anything. We confirm the international freight for your address and send you a final total; payment is only asked for once you have approved that total.
Stock is not reserved by sending a request, so availability is re-checked when the freight is confirmed.
Technical specifications
| Brand | Telemecanique Sensors |
|---|---|
| Model number | XS4P30NA340 |
| Condition | New, original packaging |
| Availability | In stock |
| Series | XS4 |
| Sensor design | Cylindrical M30 |
| Sensing distance | 15 mm |
| Output type | NPN |
| Output function | Normally Open (NO) |
| Wiring | 3-wire |
| Supply voltage | 12–24 VDC |
| Switching capacity | 200 mA DC max. |
| Connection | 2 m pre-cabled |
| Thread | M30 × 1.5 |
| Housing material | PPS plastic |
| Protection rating | IP68 |
